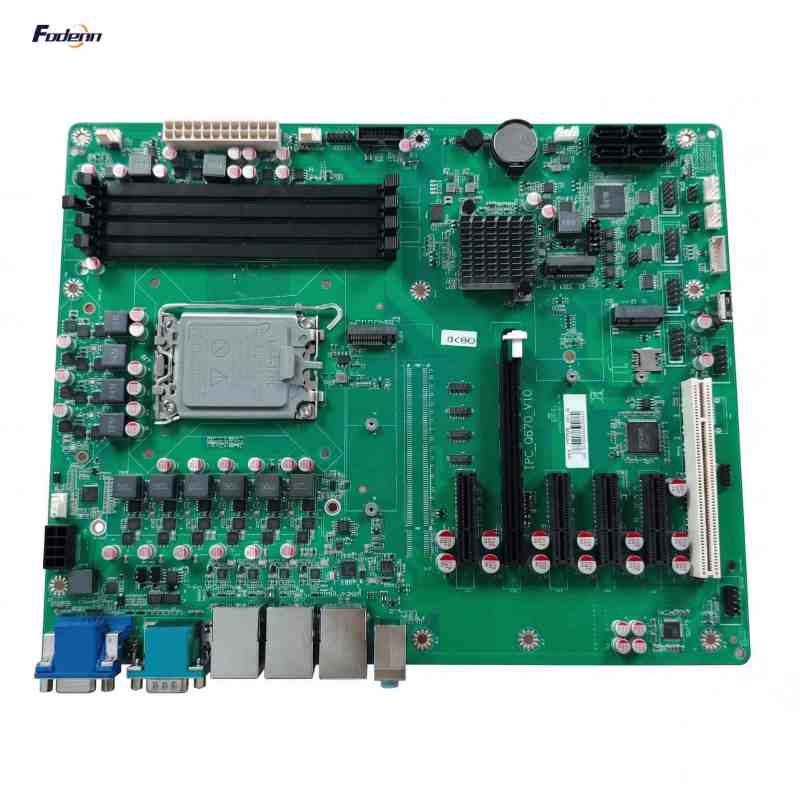

Intel Core 12-14th Gen ATX Motherboards Q670 LGA1700 Desktop Mainboards

Intel Core 12-14th Gen ATX Motherboards Q670 LGA1700 Desktop Mainboards

IPC-Q677: Fodenn supplies Intel 12-14th Gen low power consumption ATX motherboards that offer sufficient storage and PCIe expansion for space-limited applications Support Customized for Industrial IoT Controls & Automation, Thin Clients (Financial/Education, Converged Devices), Communications Infrastructure etc,supporting customized ddr4 lga 1700 mini itx mobo

  • Platform :

    Desktop
  • Size Type :

    305*245mm ATX motherboards
  • CPU :

    Intel Core 12-14th gen desktop socket LGA1700
  • RAM (Memory) :

    4x DIMM DDR4 3200, Up to 128GB
  • LAN :

    2x RJ45, Intel 219/226 Gigbite LAN
  • COM :

    2x RS232/RS422/RS485, 4x RS232 Header
  • USB :

    6x USB3.2, 2x USB2.0 Header, 2x USB erect
  • Display :

    VGA+HDMI+DP synchronous/asynchronous display
  • Item No :

    IPC-Q677 ATX
  • Brand :

    Fodenn

Advanced Processing Power: The IPC-Q677 industrial ATX motherboard is equipped with the Intel Core 12th 13th 14th Gen desktop platform processors, featuring the LGA1700 socket and Intel Q670 chipset. This ensures that the motherboard can handle the most data-intensive tasks with ease, providing the processing power needed for future-ready industrial solutions.

Ample Memory Capacity: Boasting four DIMM slots for DDR4 3200 memory, the IPC-Q677 LGA 1700 motherboard can support up to 128GB of RAM. This extensive memory capacity, along with the AMI EFI 256MBIT BIOS, ensures that the motherboard can handle complex applications and large data sets with ease.

Integrated Graphics: The onboard Intel® HD Graphics provides a reliable graphics solution for industrial control computers. With support for Windows 10/11, Linux, and Unix operating systems, the IPC-Q677 IPC ATX is versatile and ready to integrate with a variety of industrial software.

Comprehensive I/O Connectivity: The standard ATX motherboard features two RJ45 Gigabit LAN ports, and triple display outputs including VGA, HDMI, and DP for synchronous/asynchronous display. The audio interface includes a 5.1 Channel with LINE-OUT, MIC-IN, and LINE-IN, supporting SPK for clear and crisp audio.

Extended Rear I/O Interface: The IPC-Q677 Intel 12th motherboard offers two RS232/RS422/RS485 interfaces, 6 USB 3.2 ports, and a PS/2 interface on the rear, ensuring a wide range of connectivity options for peripherals and external devices.

Versatile Expansion Slots: With one PCIe x16, one PCIe x8, three PCIe x4, two PCI, and one M.2 slot, the lpc connector motherboard provides ample opportunities for expansion. It also includes four RS232 Header pins, two USB 2.0 Headers, and two USB (erect) for additional connectivity.

Industrial-Grade Resilience: The GPIO offers 16 bits digital I/O (8 in, 8 out), a 20Pin TPM Header, and a 4pin CAN port for control area network communication. The LPC socket adds to the motherboard's versatility. With the ability to operate in temperatures ranging from 0℃ to 60℃, the IPC-Q677 ISA motherboard is built to withstand harsh environments.

Power Supply and Dimensions: Powered by a 24+8Pin ATX power supply and supporting input voltages of +12V, +5V, +3.3V, -12V, the IPC-Q677 desktop atx is a standard ATX motherboard with dimensions of 305*245 millimeters. Its CE certification ensures compliance with industry standards.

Broad Application Range: The IPC-Q677 best LGA 1700 motherboard is designed for a wide range of industrial applications, including vehicle recorders, public transportation systems, toll stations, industrial automation, robotics, cleanrooms, laser CNC, agriculture, construction, mining, energy storage, utility meter reading, industrial automation equipment, rail transit devices, financial machines, medical and social security devices, miniboxes, interactive devices, all-in-one machines, intelligent transportation systems(ITS), control machine vision, self-service kiosks, cloud terminals, OPS terminals, industrial control machines, edge computing, network gateways and more.

IPC-Q677 Industrial ATX Motherboard
System CPU Core 12-14th gen desktop platform
Chipset Q670
Socket Type LGA 1700
RAM 4*DIMM DDR4 3200,  Max up to 128GB
BIOS AMI EFI 256MBIT
Graphics Intel® HD Graphics
OS Support WIN10/11, LINUX,UNIX
Watchdog 256 levels, programmable 0-255 sec/min
Rear I/O LAN 2*RJ45,Intel219/226 Gigbite LAN
Display VGA+HDMI+DP synchronous/asynchronous display
Audio 5.1 Channel,1*LINE-OUT,1*MIC-IN,1*LINE-IN,support SPK
COM 2*RS232/RS422/RS485
USB 6*USB3.2
PS/2 PS/2
Internal I/O Expansion port 1*PCIEX16 ,1*PCIEX8,3*PCIEX4,2*PCI ,1*M.2
COM 4*RS232 Header
USB 2*USB2.0Header, 2*USB(erect)
SATA 4*SATA
GPIO 16 bits digital I/O,8*In,8*Out
TPM 20Pin TPM Header
CAN 4pin CAN port
LPC 1*LPC socket
Power Power Input 24+8Pin ATX power supply
Input Voltage +12V +5V +3.3V -12V
Structure Dimension 305*245MM
Environment Operating Environment 0℃~60℃,0~95%RH, non-condensing
Storage Environment -40℃~85℃,0~95%RH, non-condensing
Certificate Safety Certification CE,CCC

Measuring 305*245mm, the IPC-Q677 ATX motherboard is a compact yet powerful solution for a variety of applications. Its small form factor board makes it ideal for use in industrial automation equipment, rail transit devices, financial machines, medical and social security devices, miniboxes, interactive devices, all-in-one machines, intelligent transportation systems(ITS), control machine vision, self-service kiosks, cloud terminals, OPS terminals, industrial control machines, edge computing, network gateways, and machine vision, Industrial automation, Rail transit, self-service payment equipment, Medical and social security, MINIBOX, Interactive application, All-in-one computer, small edge servers,Logistics Transportation, Warehouse, Electronic Education, pos machines/ digital signage/kiosk/medical equipment, industrial control, information system, electronic advertising machines, Network / commercial display fields machine, education ops panel/UAV/5G/IOT/Communication/Aviation/smart retail, widely used in multimedia school meeting room etc.
