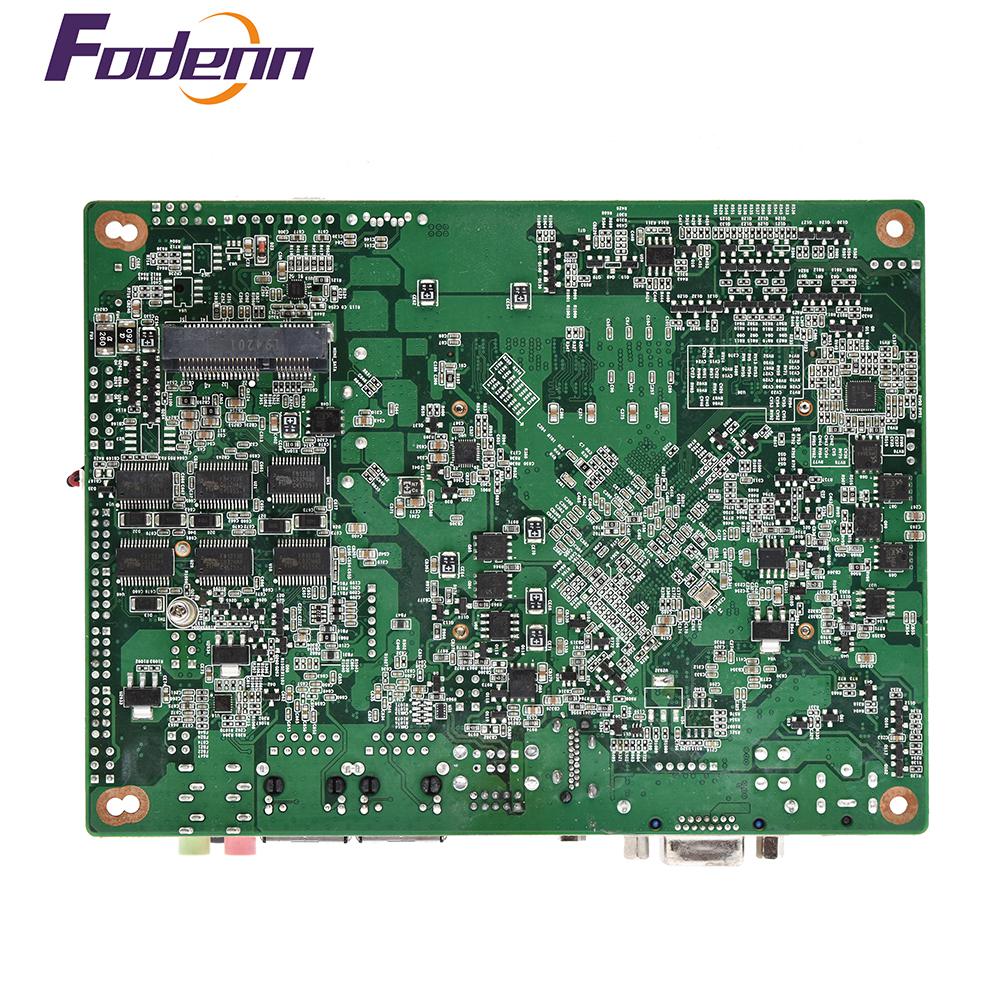

Intel Celeron J1900 J1800 3.5inch ITX Mini PCIe TDP 10W Industrial Motherboard
IPC-BT35: Fodenn supplies Industrial 3.5'' SubCompact Boards based on Intel J1900 / J1800 processor, support 8*USB,6*COM port with multifunction, OEM/ODM available,VGA HDMI LVDs/eDP Triple Displays, Full Mini-PCIE for 3G/4G/Wifi
Platform :
EmbeddedSize Type :
154.8mm*117.4mm 3.5inch ITXCPU :
Intel Celeron J1900/J1800 Quad Core TDP 10WRAM (Memory) :
DDR3L-1333， 1*SO-DIMM up to 8GBLAN :
2*RJ45 Gigabit LANCOM :
6*COM(COM2 support RS422/485),COM1/COM2 support 5V/12V outputUSB :
8*USB2.0Display :
VGA+HDMI+LVDs/eDP synchronous/asynchronous displayItem No :
IPC-BT35Brand :
FodennEfficient Processing Power: The IPC-BT35 small Form factor mainboard is equipped with the Intel Celeron J1900/J1800 Quad Core processor, offering TDP of just 10W for efficient power consumption without sacrificing processing capabilities.
Expandable Memory and BIOS: With a single SO-DIMM slot supporting DDR3L-1333 memory and the ability to expand up to 8GB, this 3.5inch ITX board is future-proof for growing industrial needs. The AMI UEFI BIOS ensures smooth system management and easy configuration.
Advanced Graphics and OS Support: Integrated Intel HD Graphics provides crisp visuals, while support for Windows 7/8/10, Linux, and UNIX operating systems ensures compatibility with a wide array of industrial software.
Comprehensive I/O Connectivity: The single board computer features 2 Gigabit LAN ports for reliable networking, a variety of display interfaces including VGA, HDMI, and EDP/LVDS, and a 5.1 Channel sound card with LINE-OUT and MIC-IN with built-in amplifier. It also offers 6-8 USB ports and a PS/2 Pin header for extensive peripheral support.
Extended Internal I/O: With 6 COM interfaces and a full-length MINI-PCIE slot for 3G/4G/WIFI expansion, the IPC-BT35 Intel Bay Trail motherboards provides ample options for connecting external devices and enhancing system capabilities.
Durable Storage and Operation: The SBC mainboard includes 1 SATA2.0 and 1 MSATA slot for storage, 8bits digital I/O for GPIO, and supports input voltages of ±12V. It is designed to operate in temperatures ranging from 0℃ to 60℃, making it suitable for harsh environments.
| IPC-BT35 Triple Displays 3.5'' ISA Industrial Motherboard | ||
| System | CPU | Intel Celeron J1900/J1800 Quad Core TDP 10W |
| RAM | DDR3L-1333， 1*SO-DIMM up to 8GB | |
| BIOS | AMI UEFI | |
| Graphics | Intel® HD Graphics | |
| OS Support | WIN7/8/10, LINUX,UNIX | |
| Watchdog | 256 levels, programmable 0-255 sec/min | |
| Rear I/O | LAN | 2*RJ45 Gigbite LAN |
| Display | VGA+HDMI+LVDs/eDP synchronous/asynchronous display | |
| Audio | 5.1 Channel，1*LINE-OUT，1*MIC-IN build-in ampifier | |
| USB | 2*USB2.0 | |
| PS/2 | Pin header | |
| Internal I/O | Expansion port | 1*Full length MINI-PCIE for 3G/4G/WiFi |
| COM | 6*COM(COM2 support RS422/485),COM1/COM2 support 5V/12V output | |
| USB | 6*USB2.0 | |
| Storage | 1*SATA2.0，1*MSATA | |
| GPIO | 8bits digital I/O | |
| Power | Power Input | DC in |
| Input Voltage | +12V | |
| Structure | Dimension | 3.5&4 inch, 154.8X117.4MM |
| Environment | Operating Environment | 0℃~60℃，0~95%RH, non-condensing |
| Storage Environment | -40℃~85℃，0~95%RH, non-condensing | |
| Certificate | Safety Certification | CE |
| Model Name | Specification | |
| IPC-BT35-N | VGA+HDMI/eDP，8*USB2.0,6*COM | |
| IPC-BT35-L | VGA+HDMI/LVDs，8*USB2.0,6*COM | |
| Parts List | DB9 COM cable，USB cable | |
Measuring only 154.8 x 117.4 millimeters, the IPC-BT35 single board computer is a miniature powerhouse suitable for industrial automation, rail transit, financial machinery, medical and social security devices, mini PCs, interactive kiosks, all-in-one machines, self-service terminals, cloud endpoints, OPS terminals, industrial control machines, edge computing, network gateways, machine vision, and AI computers.
